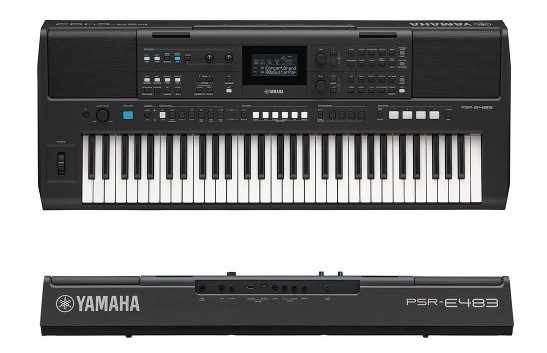

Đàn Organ Yamaha PSR-E483
-) Đàn trang bị Pictch Bend , việc đẩy lên hoặc kéo xuống sẽ thay đổi cao độ của nốt đang chơi một cách mượt mà. Giúp các tiếng nhạc cụ như Guitar, Saxophone, Trumpet, Synthessizer trở lên sống động hơn, nó tạo sự mở rộng khả năng biểu cảm khi biểu diễn.
-) Live Control Knobs giúp bạn gán các yếu tố của phần trình diễn âm nhạc giúp thay đổi đặc tính của âm thanh ngay trong lúc chơi.
THÔNG SỐ CHI TIẾT
Đàn Organ Yamaha PSR-E483
| Control Interface | Keyboard | Number of Keys | 61 |
|---|---|---|---|
| Type | Organ-Style | ||
| Touch Response | Yes (Soft, Medium, Hard, Off) | ||
| Display | Type | LCD | |
| Backlight | Yes | ||
| Language | English | ||
| Panel | Language | English | |
| Other Controllers | Pitch Bend | Yes | |
| Modulation | No | ||
| Art. Switches | Yes | ||
| Control Knobs | 2 | ||
| Voices | Tone Generation | Tone Generating Technology | AWM Stereo Sampling |
| Polyphony | Number of Polyphony (Max.) | 64 | |
| Preset | Number of Voices | 860 (322 Voices + 40 Drum/SFXKits + 40 Arpeggio Voices + 458 XGlite Voices) | |
| Featured Voices | 15 S.Art Lite Voices | ||
| Compatibility | GM | Yes | |
| XGlite | Yes | ||
| Accompaniment Styles | Preset | Number of Preset Styles | 345 |
| Fingering | Multi Finger, Smart Chord | ||
| Style Control | ACMP ON/OFF, SYNC START, SYNC STOP, START/STOP, INTRO/ENDING/rit., MAIN A, MAIN B, TRACK ON/OFF | ||
| Other Features | One Touch Setting (OTS) | Yes | |
| Auto Chord Play | 100 Chord Progressions + 10 USER Chord Progressions | ||
| Expandability | Expansion Style | 10 | |
| Compatibility | Style File Format (SFF) | ||
| Effects | Types | DSP | DSP1: 41 types + DSP2: 12 types |
| Motion Effect | 57 types | ||
| Reverb | 15 types | ||
| Chorus | 7 types | ||
| Master EQ | 5 types | ||
| Functions | Dual/Layers | Yes | |
| Split | Yes | ||
| Melody Suppressor | Yes | ||
| Harmony/Echo | 26 types | ||
| Arpeggio | 164 types | ||
| Songs | Preset | Number of Preset Songs | 2 |
| Recording | Number of Songs | 10 | |
| Number of Tracks | 6 (5 Melody + 1 Style) | ||
| Data Capacity | Approx. 19,000 notes (total for all 10 Songs) | ||
| Compatible Data Format | Playback | SMF (Formats 0 & 1) | |
| Recording | Original File Format (SMF 0 conversion function) | ||
| USB Audio Recorder | Recording Time (max.) | 80 minutes (approx. 0.9 GB) per Song | |
| Format | Playback | WAV (44.1 kHz, 16-bit, stereo) | |
| Recording | WAV (44.1 kHz, 16-bit, stereo) | ||
| Quick Sampling | Sampling Type | Oneshot, Loop | |
| Samples (Preset/User) | 4 | ||
| Sampling Time | Approx. 9.6 sec | ||
| Sampling Sources | AUX IN, MIC INPUT, USB audio interface, WAV format files | ||
| Sampling Format | Original File Format (16-bit, stereo) | ||
| Sampling Rate | 44.1 kHz | ||
| Functions | USB audio interface | 44.1 kHz, 16-bit, stereo | |
| Registration | Number of Buttons | 4 (x 8 banks) | |
| Control | Freeze | ||
| Overall Controls | Metronome | Yes | |
| Tempo Range | 11 – 280 | ||
| Transpose | -12 – 0 – +12 | ||
| Tuning | 427.0 – 440.0 – 453.0 Hz (approx. 0.2 Hz increments) | ||
| Octave Button | Yes | ||
| Scale Type | 5 | ||
| Miscellaneous | PIANO Button | Yes | |
| Looper | Yes | ||
| Megaboost | 2 steps (approx. +3 dB, and +6 dB) | ||
| Storage and Connectivity | Storage | Internal Memory | Approx. 1.72 MB |
| External Drives | USB flash drive | ||
| Connectivity | DC IN | 12 V | |
| AUX IN | Stereo mini jack × 1 | ||
| Headphones | Standard stereo phone jack × 1 | ||
| Foot Switch | Yes (Sustain, Arpeggio Hold, Sustain+Arpeggio Hold, Articulation) | ||
| Expression Pedal | No | ||
| USB TO DEVICE | Yes (USB Type-A) | ||
| USB TO HOST | Yes (USB Type-C™) | ||
| LINE OUT | Standard stereo phone jacks: L/L+R, R | ||
| Microphone | Standard stereo phone jack x 1 | ||
| Sound System | Amplifiers | 6 W x 2 | |
| Speakers | 12 cm x 2 | ||
| Power Supply | Power Supply | Adaptors | PA-150 or an equivalent recommended by Yamaha (Output : DC 12V, 1.5 A) |
| Batteries | Six “AA” size alkaline (LR6), manganese (R6) or Ni-MH rechargeable batteries | ||
| Power Consumption | 13W (When using PA-150C AC adaptor) | ||
| Auto Power Off Function | Yes (Disabled/5/10/15/30/60/120 minutes) | ||
| Accessories | Included Accessories | Owner’s Manual, Music Rest, AC adaptor *: PA-150 or an equivalent recommended by Yamaha. (* May not be included depending on your area. Check with your Yamaha dealer.) | |
| Size/Weight | Dimensions | Width | 992 mm (39-1/16”) |
| Height | 136 mm (5-3/8”) | ||
| Depth | 404 mm (15-7/8”) | ||
| Weight | Weight | 7.0kg (15 lb, 7 oz) (not including batteries) | |
| Packing Box | Width | 1068 mm (42-1/16″) | |
| Height | 216 mm (8-1/2″) | ||
| Depth | 500 mm (19-11/16″) | ||
